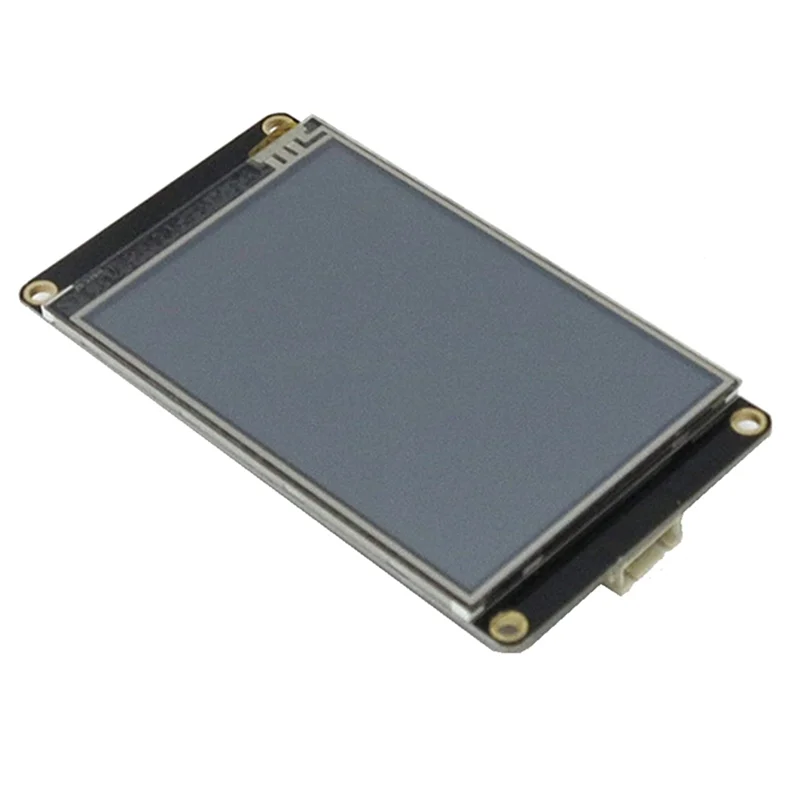

T35C HMI LCD Touch Display NX4832K035 3.5-Inch Resistive Display Enhanced Series UASRT TFT LCD Module

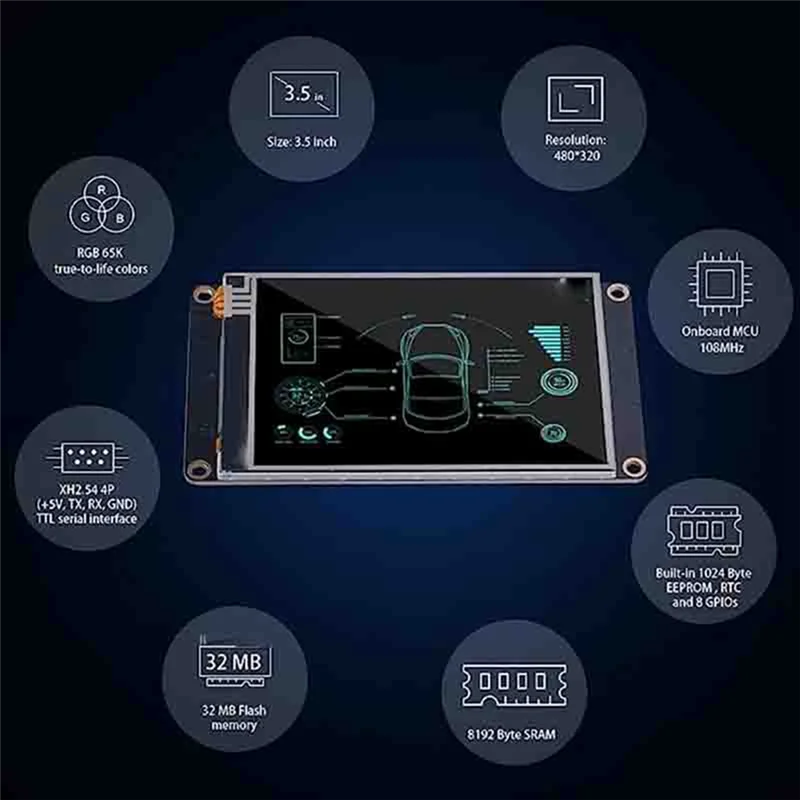

1. Enhanced version is more powerful. Compared to the basic display, the new display adds some new features: support for built-in RTC, support for saving data to flash memory, support for GPIO, larger flash memory capacity, and larger CPU clock. The Enhanced Series is available in 7 sizes ranging from a generic 2.4inch to 7.0inch. 2. Enhanced NX3224K028 is a powerful 2.8inch HMI TFT display with 16MB Flash data storage space, 1024 bytes EEPROM, 3584 bytes RAM. With GPIO support, you can now use to control external devices. 3. is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or device. It is the best solution to replace traditional LCD and LED digital tubes. Color: Black Material: plastic Product Description Support built-in RTC Support GPIO SD card interface: maximum support 32G Micro-TF/SD card (FAT32 file format) Flash data storage space: 32MB EEPROM: 1024 bytes Memory: 8192 bytes Instruction buffer: 1024 bytes Resolution: 480x320 pixels Adjustable brightness: 0~180 nit, the adjustment interval is 1% Specification Visual area: 73.44mm(L)x48.96mm(W) Layout size: 100.5mm(L)x54.94mm(W)x5.45mm(H) Touch type: Resistive Backlight: LED Backlight life (average): 30,000 hours Recommended power supply: 5V 500mA DC Package Contents: 1 x Display 1 supply test board 1 x 4-pin grove cable Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
