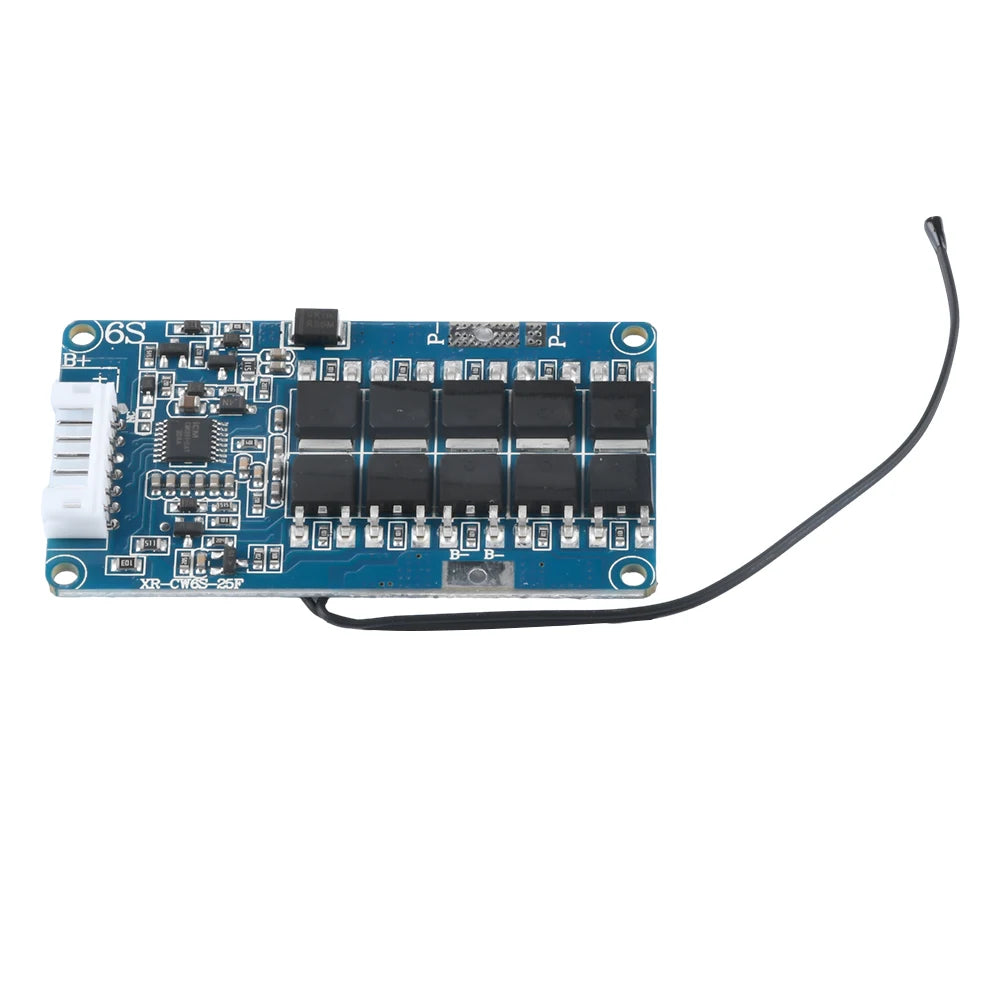

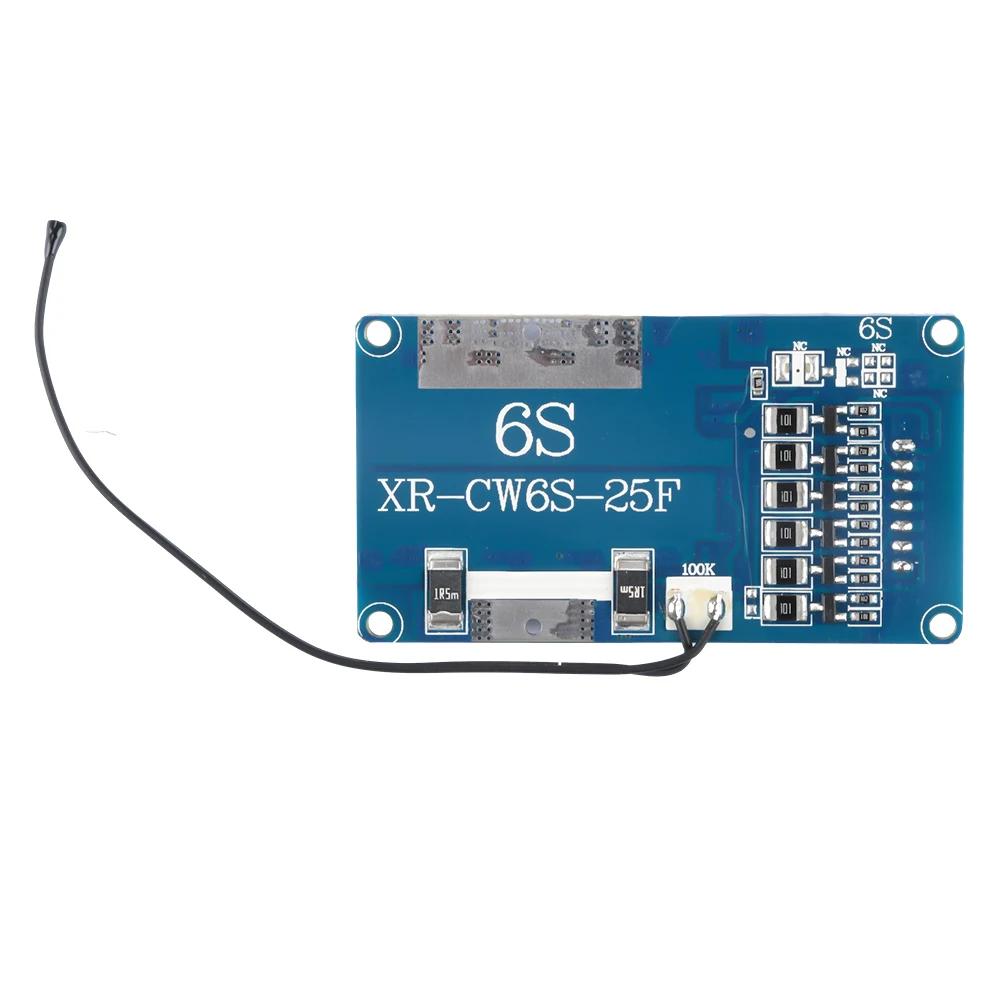

6S 22.2V Lithium Battery Charger Protection Board Active Equalisation Module with Temperature Control Battery Management System

Product Features:
1. Using high quality materials, product quality is guaranteed
2. Stable heat dissipation performance, easy to use
3. Components are neatly arranged, more exquisite and beautiful
4. Products with over-charging, over-current, over-discharge, short-circuit protection, etc., more safe and reliable
5. Wide range of applications, suitable for a variety of industrial DIY occasions

Parameter:

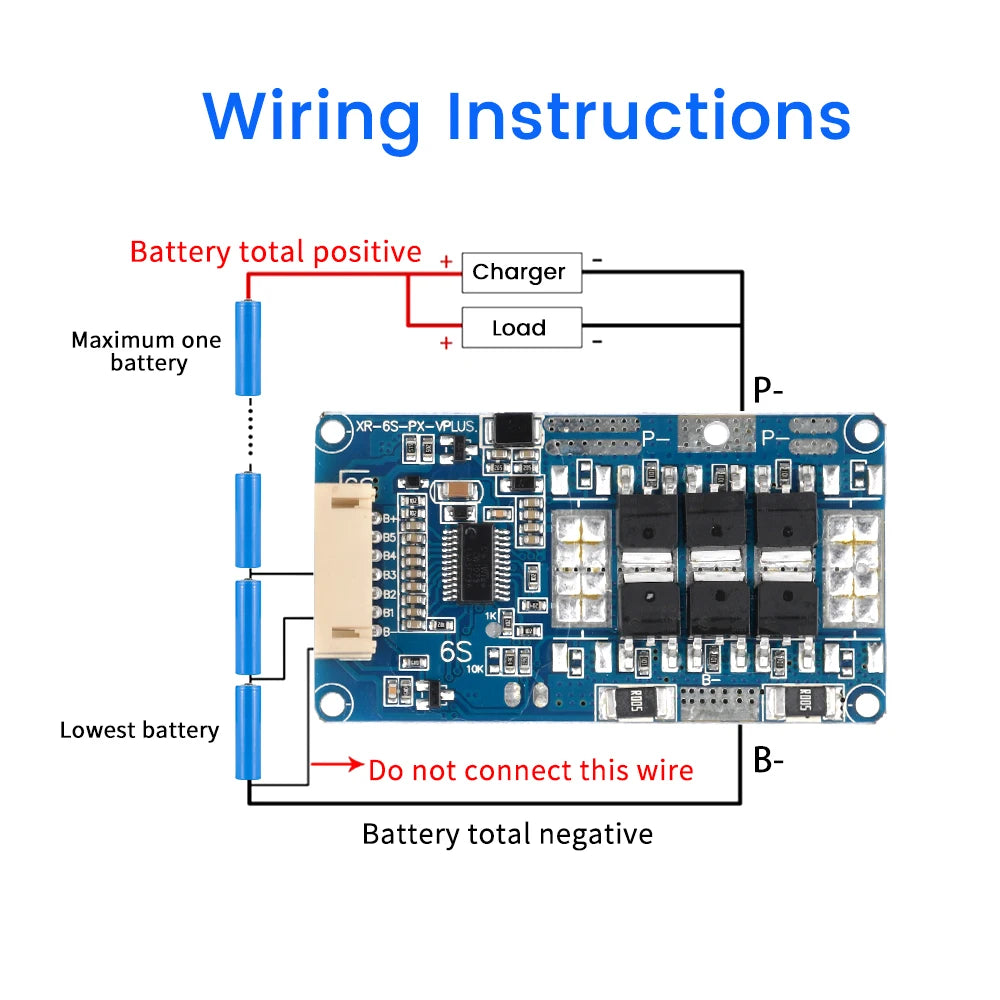

Wiring: same port
Single battery over-discharge voltage: 2.7V±0.08V
Continuous working current: 18A
Instantaneous protection current: 50A
Overcurrent recovery conditions: charging recovery or disconnecting the load
Short-circuit recovery condition: charging recovery or disconnecting the load
Single battery overcharge voltage: 4.25V±0.025V
Continuous charging current: 15A
Charger voltage: 30V (recommended)
Operating power consumption: ≤30uA
Main circuit conduction internal resistance: ≤20mΩ
Temperature range: -40+80°C
Disconnection protection: Yes
Wire size: 2.0MM pitch/40CM length

Frequently Asked Questions:
How many A protection boards should I choose?
A: How many A protection board depends on the motor power of your electric car or the controller current limit, such as 250W or less choose 15A, 500W or less choose 20A, 800W or less choose 30A, the protection board current can not be less than the controller current limit.

My battery is 20AH, can I use this protection board?
A: The size of your battery capacity and the size of the current with this board is not directly related to the capacity of the battery is not large, mainly to see the continuous current, that is, the larger your motor, you choose the protection board continuous current to be larger, with your battery capacity is not directly related.

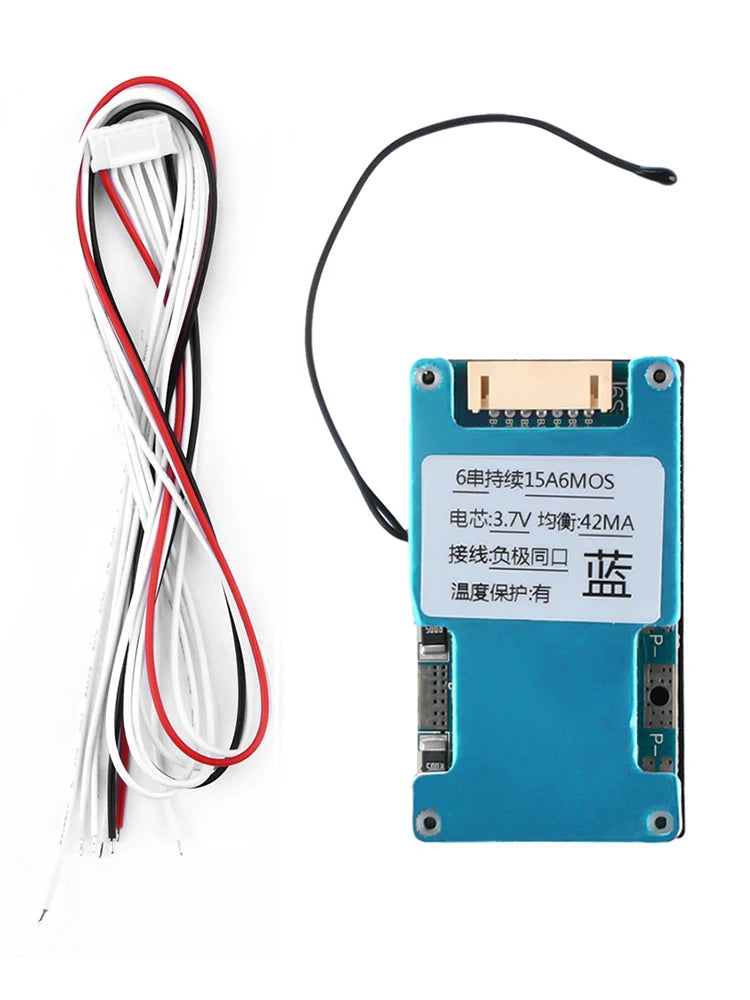

Product list:

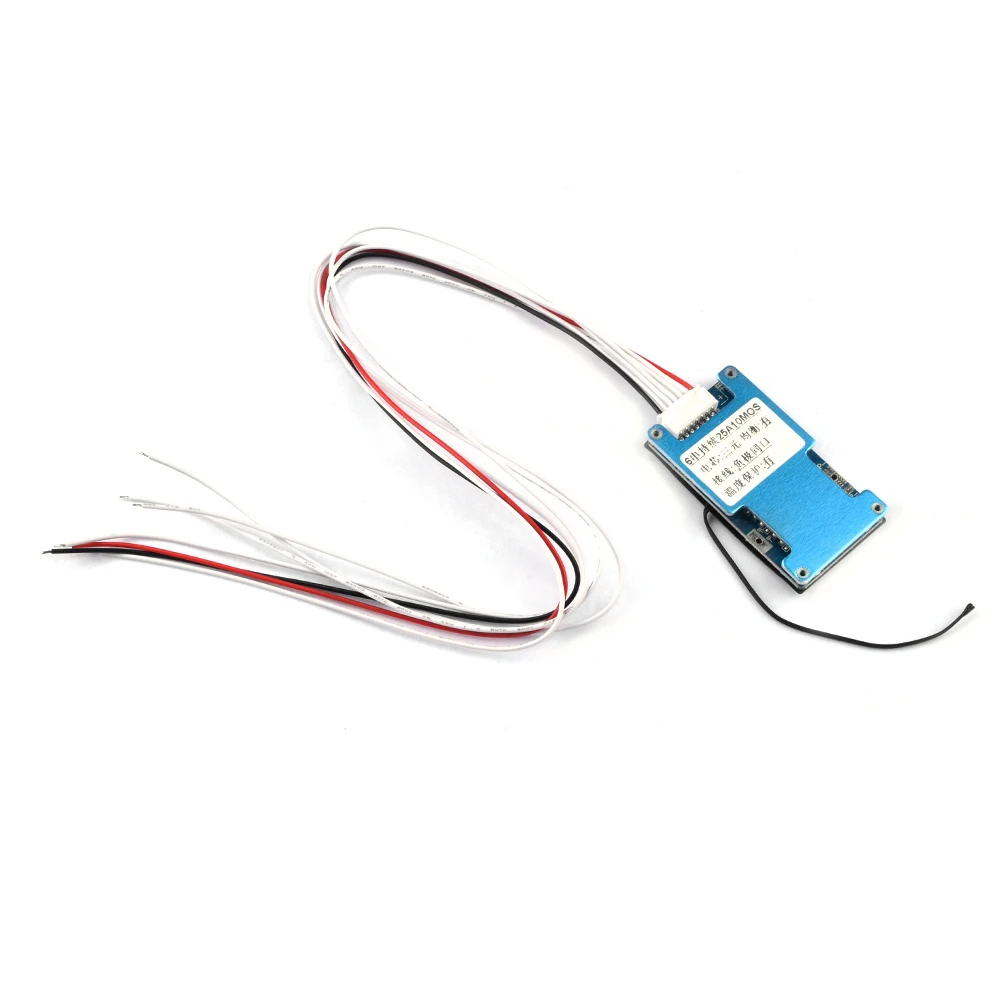

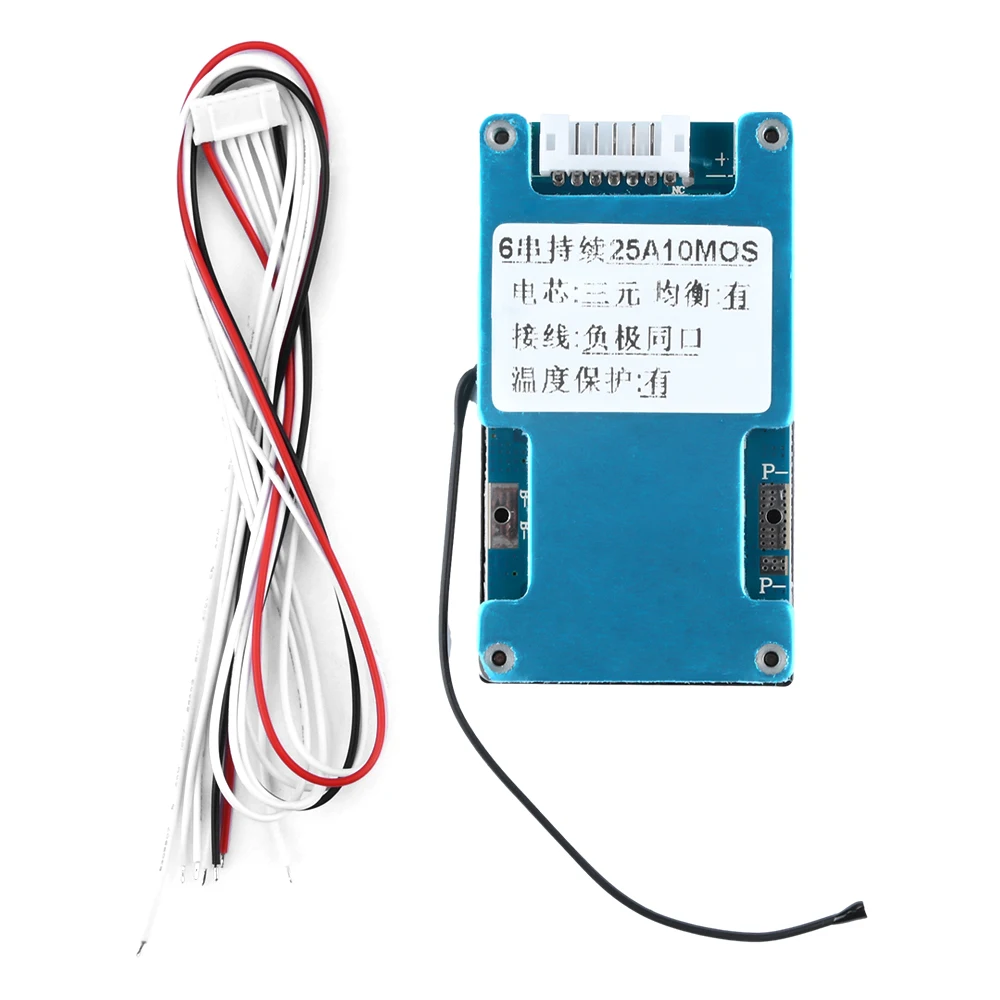

Lithium battery protection board * 1
Cable*1
